# Edges Edges are the **routing logic** that connects nodes in your MindedJS flows. They determine how your agent moves through the workflow, making intelligent decisions about which path to take based on different conditions and contexts. ## What are Edges? Edges define the **transitions between nodes** in your flow. Each edge specifies: * **Source** - The starting node * **Target** - The destination node * **Type** - The routing logic type * **Condition** - The criteria for taking this path * **Prompt** - The prompt for the LLM to make a decision ## Edge Types MindedJS provides three types of edges for different routing scenarios: | Edge Type | Purpose | When to Use | | ------------------------------------------------- | ------------- | ------------------------------------------------ | | [**Step Forward**](#step-forward-edges) | Unconditional | Sequential processing, guaranteed transitions | | [**Prompt Condition**](#prompt-condition-edges) | LLM-based | Intelligent routing based on context and content | | [**Logical Condition**](#logical-condition-edges) | Code-based | Deterministic routing based on memory/data | ## Step Forward Edges Step forward edges create **unconditional transitions** between nodes. They're useful for sequential processing where you always want to move to the next step. ```yaml - source: Customer Support Request target: Support Agent type: stepForward ``` **Use Cases:** Data transformation pipelines, required validation steps, guaranteed notifications, logging and audit trails. ## Prompt Condition Edges Prompt condition edges use **language models** to make intelligent routing decisions based on conversation context, memory state, and complex reasoning. ```yaml - source: Support Agent target: Escalate to Human type: promptCondition prompt: 'Based on the conversation, should this be escalated to a human agent?' ``` ### Context-Aware Routing ```yaml - source: Customer Service Bot target: VIP Support type: promptCondition prompt: | Should this customer be routed to VIP support? Consider: - Customer tier - Issue severity - Previous escalations - Current sentiment: (analyze from conversation) ``` ### Multi-Path Routing ```yaml # Route to different specialists based on issue type - source: Issue Classifier target: Technical Support type: promptCondition prompt: 'Is this a technical/software issue requiring troubleshooting?' - source: Issue Classifier target: Billing Support type: promptCondition prompt: 'Is this a billing, payment, or account-related issue?' - source: Issue Classifier target: General Support type: promptCondition prompt: "Is this a general inquiry that doesn't fit other categories?" ``` ## Logical Condition Edges Logical condition edges use **JavaScript expressions** to make deterministic routing decisions based on memory state, providing precise control over flow logic. Prefer using prompt condition edges, unless you need an exact match of an ouput of a previous node. ```yaml - source: Order Lookup target: Refund Processing type: logicalCondition condition: "state.memory.orderStatus === 'delivered'" ``` ### How Condition Expressions Work The condition field accepts a **JavaScript expression** that will be evaluated to determine if the edge should be taken. The expression has access to the current agent state through the `state` variable and the previous node's result through the `lastNodeResult` variable. The condition is automatically wrapped in a function that provides the state and lastNodeResult result context: ```javascript // Your condition: state.memory.orderStatus === 'delivered' // Becomes: (function ({ state, lastNodeResult }) { return state.memory.orderStatus === 'delivered'; }); ``` ```javascript // Your condition: lastNodeResult.price > 100 // Becomes: (function ({ state, lastNodeResult }) { return lastNodeResult.price > 100; }); ``` ### Supported Expression Types #### Simple Comparisons ```yaml # Equality check condition: "state.memory.status === 'active'" # Numeric comparison condition: "state.memory.orderValue > 1000" # String comparison condition: "state.memory.customerTier !== 'basic'" # Boolean check condition: "state.memory.isVerified" condition: "!state.memory.hasErrors" ``` #### Complex Expressions ```yaml # Multiple conditions with AND condition: "state.memory.orderValue > 500 && state.memory.customerAge < 30" # OR conditions condition: "state.memory.priority === 'high' || state.memory.customerTier === 'vip'" # Nested property access condition: "state.memory.order.items.length > 5" # Array methods condition: "state.memory.tags.includes('urgent')" # String methods condition: "state.memory.email.endsWith('@company.com')" # Combining state and lastNodeResult condition: "lastNodeResult.status === 'success' && state.memory.retryCount === 0" # lastNodeResult result with fallback condition: "(lastNodeResult?.productName || state.memory.defaultProduct) === 'iPhone 15'" ``` #### Advanced JavaScript Operations ```yaml # Ternary operators condition: "state.memory.score > 80 ? state.memory.level === 'expert' : state.memory.level === 'beginner'" # Date comparisons condition: "new Date(state.memory.orderDate) < new Date()" # Regular expressions condition: "/^[A-Z]{2}\\d{4}$/.test(state.memory.orderId)" # Math operations condition: "Math.abs(state.memory.temperature - 72) < 5" # JSON operations condition: "JSON.parse(state.memory.configString).enabled === true" ``` ### Available Context Your condition expressions have access to: * **state**: The full agent state object (access as `state.memory`, `state.messages`, etc.) * **lastNodeResult**: The result from the previous node in the flow * **Standard JavaScript globals**: `Math`, `Date`, `JSON`, `console` * **String/Array/Object methods**: All standard JavaScript methods #### Accessing State Properties ```yaml # Access memory through state condition: "state.memory.orderStatus === 'pending'" # Access messages condition: "state.messages.length > 10" # Access other state properties condition: "state.conversationId && state.memory.isAuthenticated" ``` #### Accessing Previous Node Results The `lastNodeResult` object provides access to the result of the last executed node in the flow. This is particularly useful when you need to route based on what the previous operator or tool returned. ```yaml # Route based on operator output - source: Search Products target: Show Results type: logicalCondition condition: 'lastNodeResult && lastNodeResult.productCount > 0' # Route based on tool result - source: Validate Order target: Process Payment type: logicalCondition condition: "lastNodeResult.status === 'valid'" # Check specific fields from operator outputSchema - source: Extract Customer Data target: VIP Handler type: logicalCondition condition: "lastNodeResult.customerTier === 'premium'" ``` **How `lastNodeResult` Works** MindedJS automatically extracts and normalizes results from different node types: * **Operator (Browser Task) nodes**: Extracts from `outputSchema` fields * **Tool nodes**: Extracts the `result` property returned by the tool * **RPA nodes**: Extracts collected data from RPA steps * **App Tool nodes**: Extracts the tool execution result **Example with Operator:** ```yaml # Operator node with outputSchema - name: search-amazon type: browserTask displayName: Search Amazon prompt: Search for iPhone 15 on Amazon and extract the price outputSchema: - name: productName type: string - name: price type: number # Next node with logical condition using lastNodeResult - source: search-amazon target: High Price Handler type: logicalCondition condition: 'lastNodeResult.price > 1000' - source: search-amazon target: Low Price Handler type: logicalCondition condition: 'lastNodeResult.price <= 1000' ``` **Example with Tool:** ```typescript // Tool that returns a result const validateOrderTool: Tool = { name: 'validateOrder', execute: async ({ input, state }) => { return { result: { status: 'valid', orderId: '12345', total: 299.99, }, }; }, }; ``` ```yaml # Route based on tool result - source: Validate Order Tool target: Process Payment type: logicalCondition condition: "lastNodeResult.status === 'valid' && lastNodeResult.total < 500" ``` **Safety Checks:** Always check if `lastNodeResult` exists before accessing its properties: ```yaml # Safe condition with null check condition: "lastNodeResult && lastNodeResult.status === 'success'" # Alternative with optional chaining syntax condition: "lastNodeResult?.productName === 'iPhone 15'" ``` #### Example: Using lastNodeResult After a Tool When a tool executes and returns a result, you can route based on that result using logical conditions. Here's a complete example with the `refundOrder` tool: **Tool Implementation:** ```typescript const refundOrderTool: Tool = { name: 'refundOrder', description: 'Refund order', input: schema, execute: async ({ input, state }) => { return { result: { status: 'success', // or 'failure' refundAmount: 100, }, }; }, }; ``` **Flow Configuration with Logical Conditions:** ```yaml edges: - source: refundOrder target: Success type: logicalCondition condition: "lastNodeResult.status === 'success'" - source: refundOrder target: Failure type: logicalCondition condition: "else" ``` In this example, the tool returns a `result` object with a `status` property. The edges then route to different nodes based on whether the refund was successful or failed.

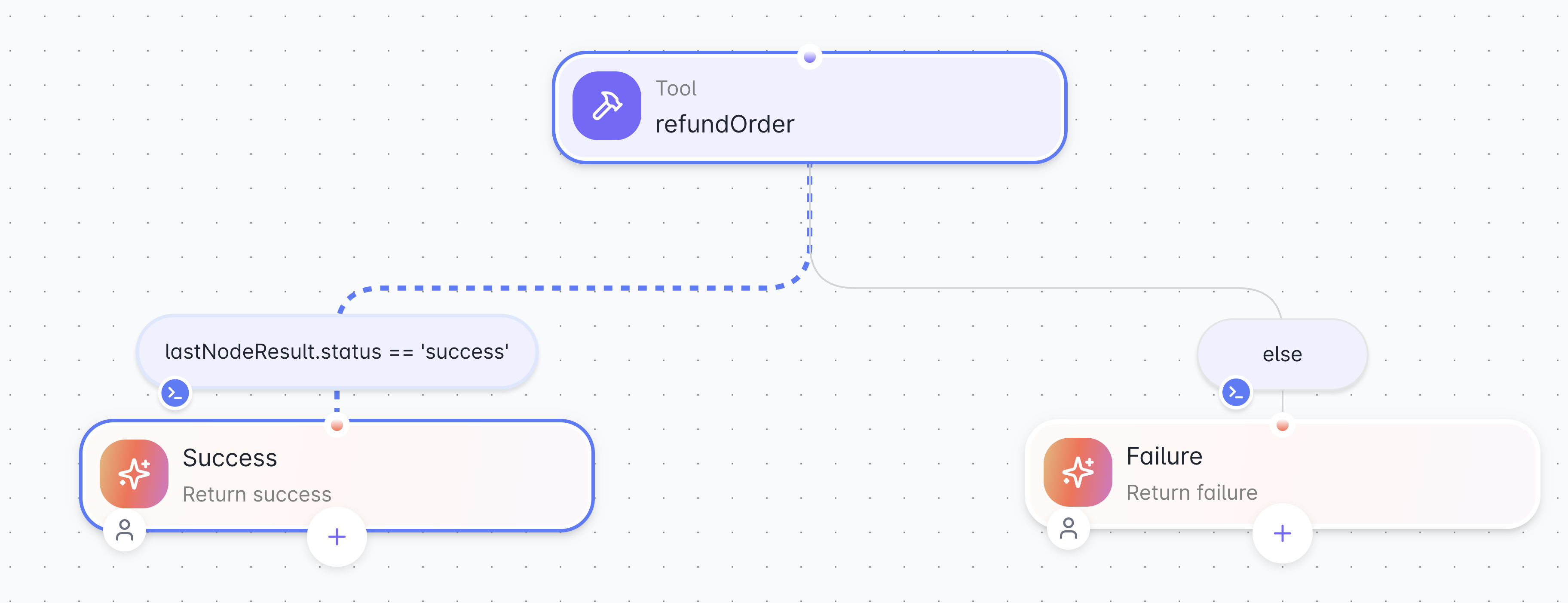

Using lastNodeResult after a tool

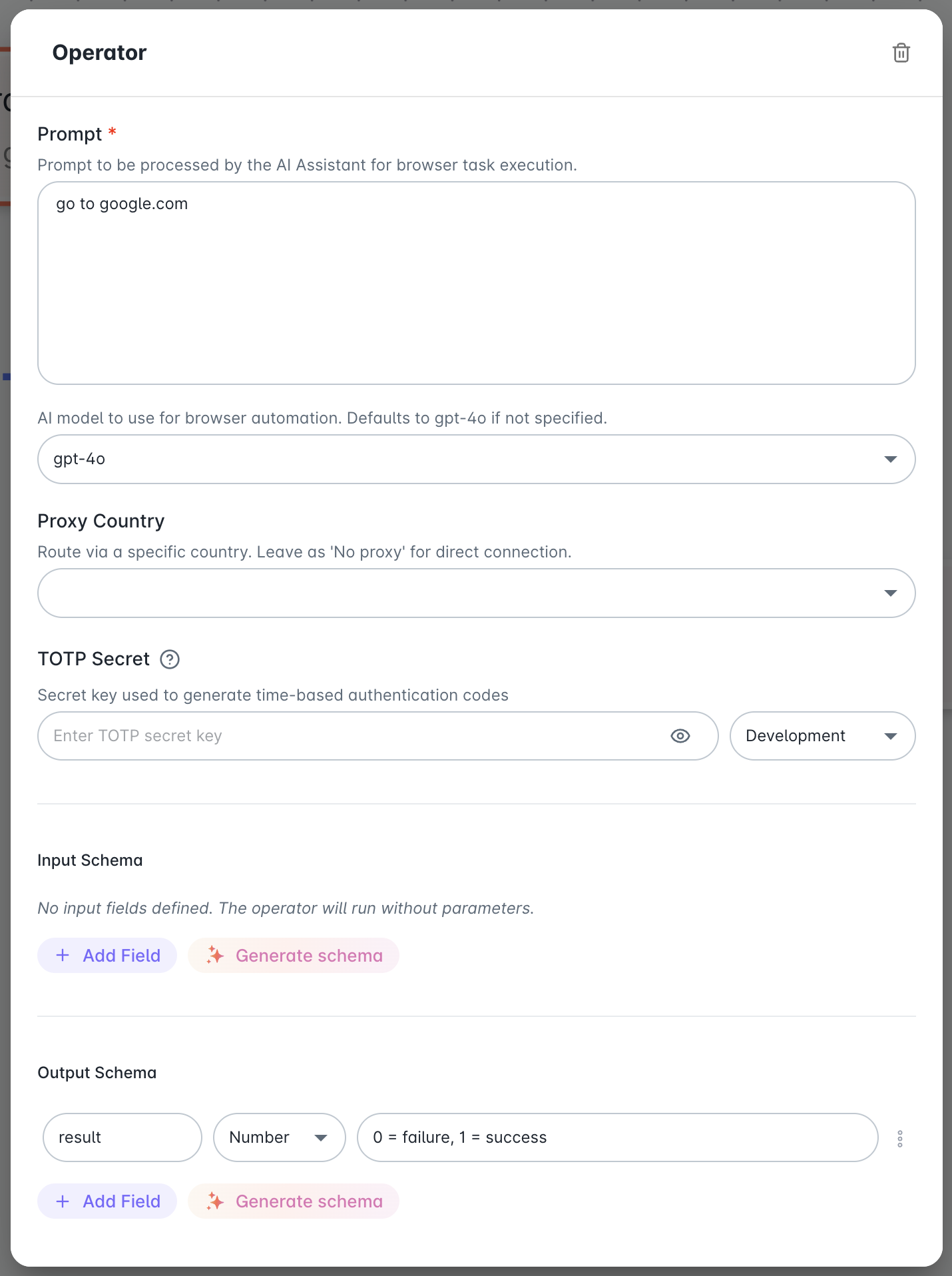

#### Example: Using lastNodeResult After an Operator For Operator (Browser Task) nodes, you need to define the output schema first, then you can route based on the operator's result. **Step 1: Configure Operator Output Schema** In your operator node, add an output schema field to capture the result: * **Field name**: `result` * **Field type**: `Number` * **Description**: `0 = failure, 1 = success`
Operator setup with output schema

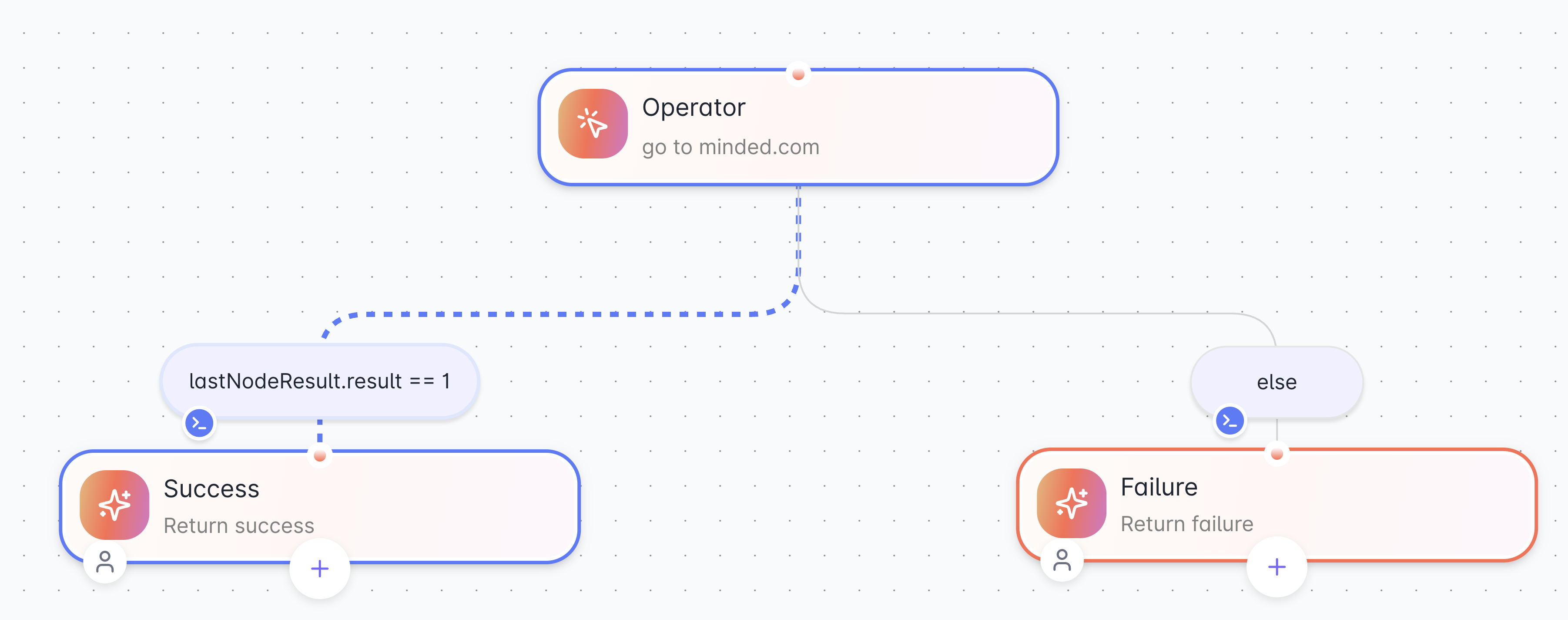

**Step 2: Configure Edges with Logical Conditions** ```yaml edges: - source: Operator target: Success type: logicalCondition condition: 'lastNodeResult.result === 1' - source: Operator target: Failure type: logicalCondition condition: 'lastNodeResult.result === 0' ``` The operator will extract the result value according to the prompt and output schema, and the edges will route based on whether the result is `1` (success) or `0` (failure).
Using lastNodeResult after an operator
**Note:** For security, the following are NOT available: * `process`, `require`, `global`, `Buffer` * File system or network operations * Module imports ### Memory-Based Routing ```yaml # Route based on customer tier - source: Customer Routing target: Premium Support type: logicalCondition condition: "state.memory.customerTier === 'premium'" # Route based on order value - source: Order Processing target: Manual Review type: logicalCondition condition: 'state.memory.orderValue > 1000' ``` ### Complex Logic Conditions ```yaml # Multiple conditions with AND logic - source: Payment Processor target: Fraud Check type: logicalCondition condition: | state.memory.orderValue > 500 && state.memory.customerAge < 30 && state.memory.shippingCountry !== state.memory.billingCountry # Date-based conditions - source: Order Validator target: Late Order Handler type: logicalCondition condition: | (Date.now() - new Date(state.memory.orderDate).getTime()) / (1000 * 60 * 60 * 24) > 30 ``` ### Debugging Logical Conditions For comprehensive debugging of logical conditions, see the [Debugging Guide](https://docs.minded.com/sdk/debugging#debugging-logical-conditions). ## Edge Evaluation Order When multiple edges exist from the same source node, MindedJS evaluates them by **edge type priority**, not declaration order: ### Priority System | Priority | Edge Type | Behavior | | -------- | ------------------ | ------------------------------------------------------- | | **1st** | `stepForward` | Always executes first (max 1 per source) | | **2nd** | `logicalCondition` | Executes if no step forward edge | | **3rd** | `promptCondition` | Executes if no step forward and logical conditions fail | ```yaml # Priority-based evaluation regardless of declaration order edges: - source: Decision Node target: AI Router # 3rd priority: Only if logical fails type: promptCondition prompt: 'Which handler should process this request?' - source: Decision Node target: Default Handler # 1st priority: Always executes type: stepForward - source: Decision Node target: High Priority # 2nd priority: Checked if no stepForward are present type: logicalCondition condition: "state.memory.priority === 'high'" ``` ### Logical Condition Order Within logical condition edges from the same source, evaluation follows **declaration order**: ```yaml edges: # Logical conditions evaluated in declaration order: 1 -> 2 -> 3 - source: Order Processor target: VIP Handler # 1st: Checked first type: logicalCondition condition: "state.memory.customerTier === 'vip'" - source: Order Processor target: Large Order # 2nd: Checked if VIP fails type: logicalCondition condition: 'state.memory.orderValue > 1000' - source: Order Processor target: Standard Handler # 3rd: Checked if both above fail type: logicalCondition condition: 'true' # Fallback condition ``` ### Mixed Edge Example ```yaml edges: # This stepForward will ALWAYS execute first, regardless of order - source: Payment Processor target: Success Page type: stepForward # These will never execute because stepForward takes priority - source: Payment Processor target: Error Handler type: logicalCondition condition: "state.memory.status === 'error'" - source: Payment Processor target: AI Router type: promptCondition prompt: 'Should we route to error handling?' ``` ## Advanced Patterns ### Fallback Chains When you have multiple `logicalCondition` edges from the same source, you can define a final fallback edge by using `condition: "else"`. This fallback edge is taken only if none of the previous conditions evaluate to `true`. ```yaml # Try specific handlers first, fall back to general - source: Issue Classifier target: Billing Specialist type: logicalCondition condition: "state.memory.issueType === 'billing'" - source: Issue Classifier target: General Support type: logicalCondition condition: "else" ``` ### Error Handling ```yaml - source: Payment Processor target: Success Handler type: logicalCondition condition: "state.memory.paymentStatus === 'success'" - source: Payment Processor target: Failure Handler type: logicalCondition condition: "state.memory.paymentStatus === 'failed' || state.memory.retryCount >= 3" ``` ## Next Steps * [**Tools**](https://docs.minded.com/low-code-editor/tools) - Build powerful functions that your edges can route to * [**Memory Types**](https://github.com/minded-ai/mindedjs/blob/main/docs/platform/memory.md) - Design state that supports effective routing * [**Implementation Examples**](https://github.com/minded-ai/mindedjs/blob/main/docs/implementation-examples/edge-examples.md) - See complete edge examples Master edges to create intelligent, responsive flows that adapt to any situation! 🔄
